Descripción

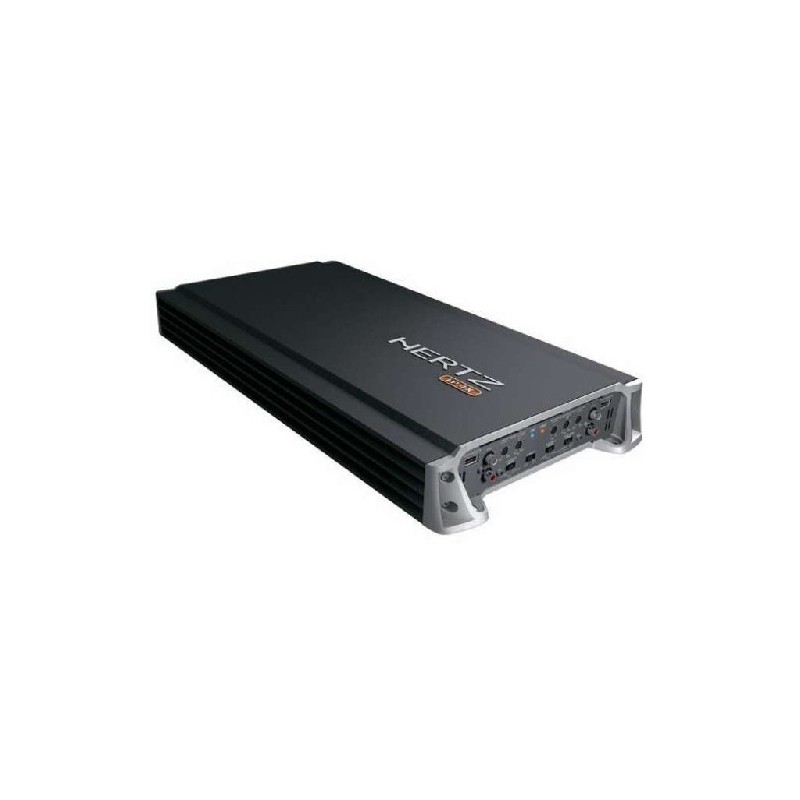

Etapa Hertz 4 Canales EP4X
Potencia de Salida (RMS):
4 Ch 100 W x 4 (4?)
4 Ch 160 W x 4 (2?)
3 Ch 100 W x 2 (4?) + 320 W x 1 (4?)
3 Ch 160 W x 2 (2?) + 320 W x 1 (4?)
2 Ch 320 W x 2 (4?)
Distorsion – THD ( 1kHz @ 4 ?): 0.08%
Bandwidth (-3 dB): 7 / 60k Hz
S/N Ratio (A weighted @ 1 V): 98 dB
Damping factor (1kHz @ 4 ?): 130
Pre-In sensitivity: 0.3 / 5V
Pre-In impedance: 15 k?
Speaker-In sensitivity: 1.4 / 24V
Speaker-In impedance: 470?
Remote In: 6 ÷ 15 VDC – 1 mA
Remote Out : 12 VDC – 15 mA
Remote Automatico con la señal de entrada de linea ARTTM:
Fuse: 3 x 30 A
Max size (mm/inches): 240 x 500 x 54
