Descripción
Caracteristicas:

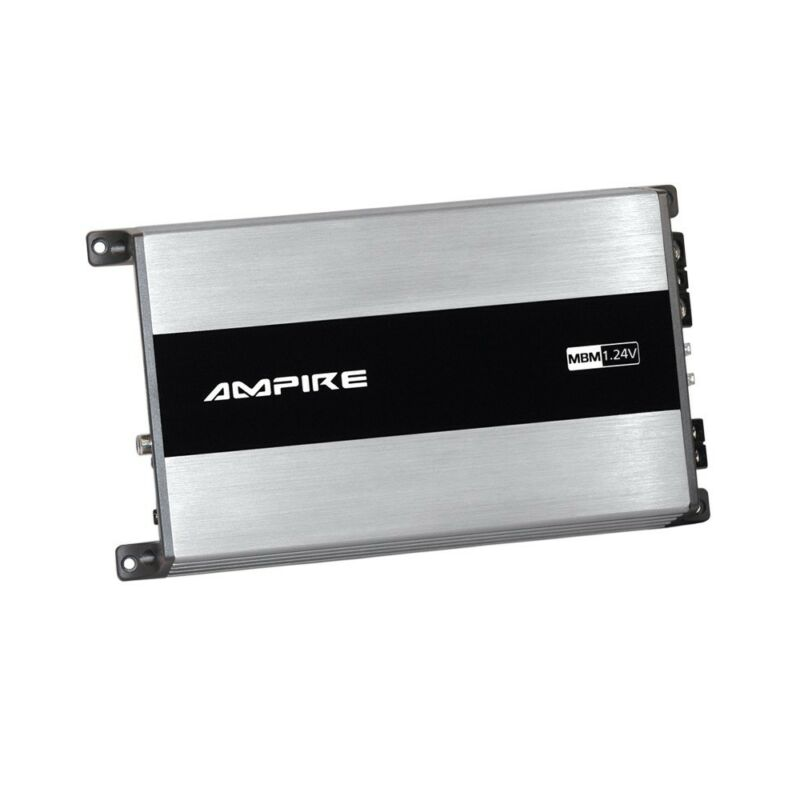

MBM1.24V
– Mono Digital Amplifier
– Ultra-Compact Design
– Cinch & Speaker Inputs
– 500 Watt RMS/1000 Watt max.
– Illuminated AMPIRE Logo
Specification:
Power Supply
Power supply voltage: 20 – 32 VDC
Remote voltage: 8 – 28 VDC
Idling current: 0,86A
Idling current when off: <0,4mA
Amplifier Stage
Output power (RMS) @ 28,8V / 4 Ohm: 300 Watt x 1
Output power (RMS) @ 28,8V / 2 Ohm: 500 Watt x 1
Output power (max.) @ 28,8V / 4 Ohm: 600 Watt x 1
Output power (max.) @ 28,8V / 2 Ohm: 1000 Watt x 1
Distortion (THD): <0,5%
S/N Ratio: >85dB
Input sensitivity: 200mV – 6,0V
Filters
Low pass filter/slope: 30Hz – 250Hz / 12dB
Bass Boost/Frequency: 0 – 12dB / 40 – 100Hz variable
Other Functions
Fuse: 25A x 2
Max size: (LxWxH) 251 x 141 x 50mm
Weight: 1,90Kg
Inputs: RCA x2, High Level x2 (High Level Auto Turn On)
Type approval:
– E8 10R-04 1282
